Jeep JT Gladiator TrailTap Power Port

TrailTap Power Port for Jeep JT Gladiator

Add USB and 12v power to your Gladiator's bed. The TrailTap Power Port mounts in the factory square plug opening in the passenger-side rear bedside and wires directly to your battery. It works on trucks with or without the factory 110v outlet.

Features

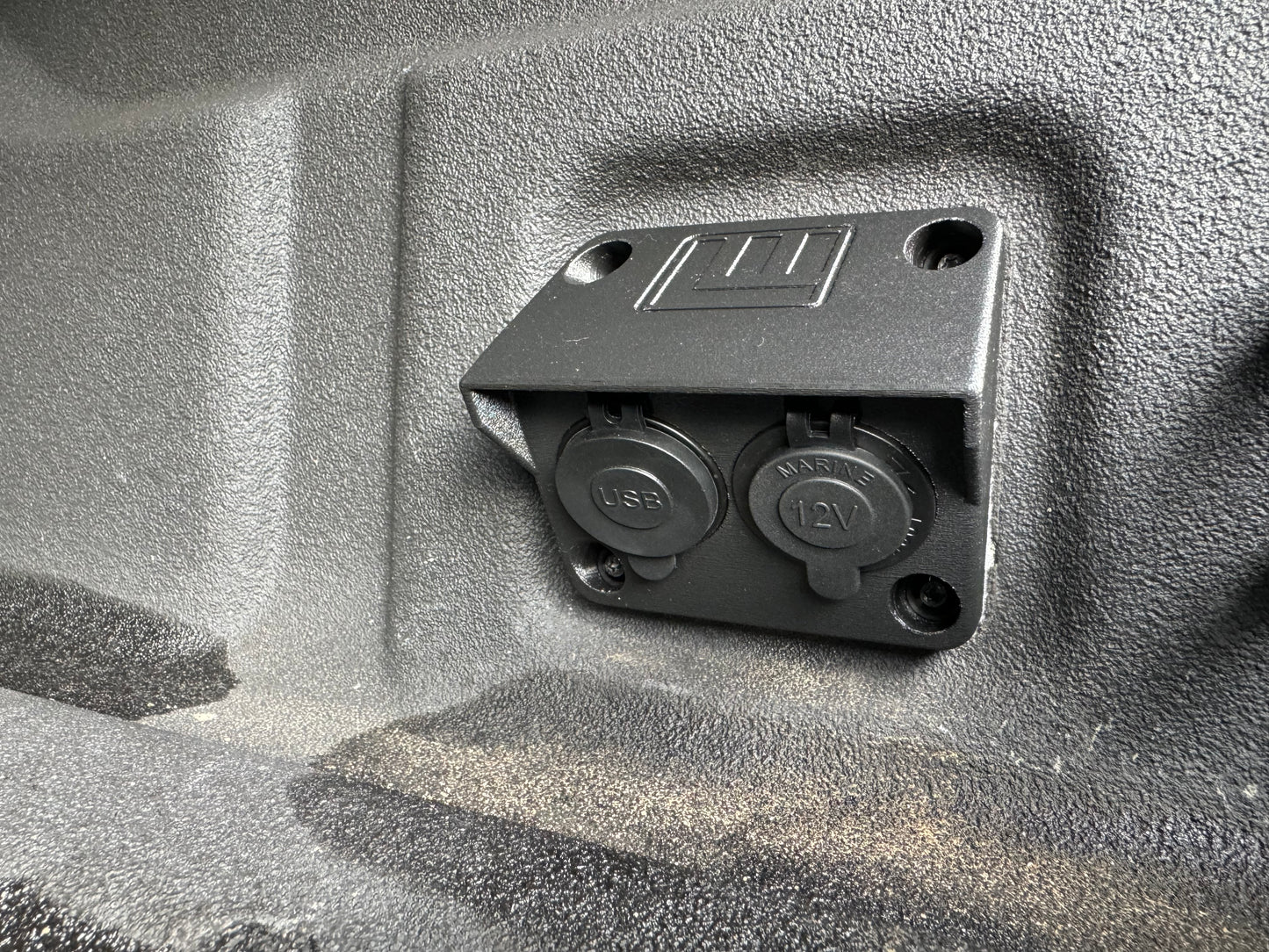

• Twin USB-A ports plus one standard 12v outlet (cigarette lighter style) rated for 15A
• Tough, weather-resistant PETG housing
• Built-in rain roof over the outlets
• 12-gauge wiring harness

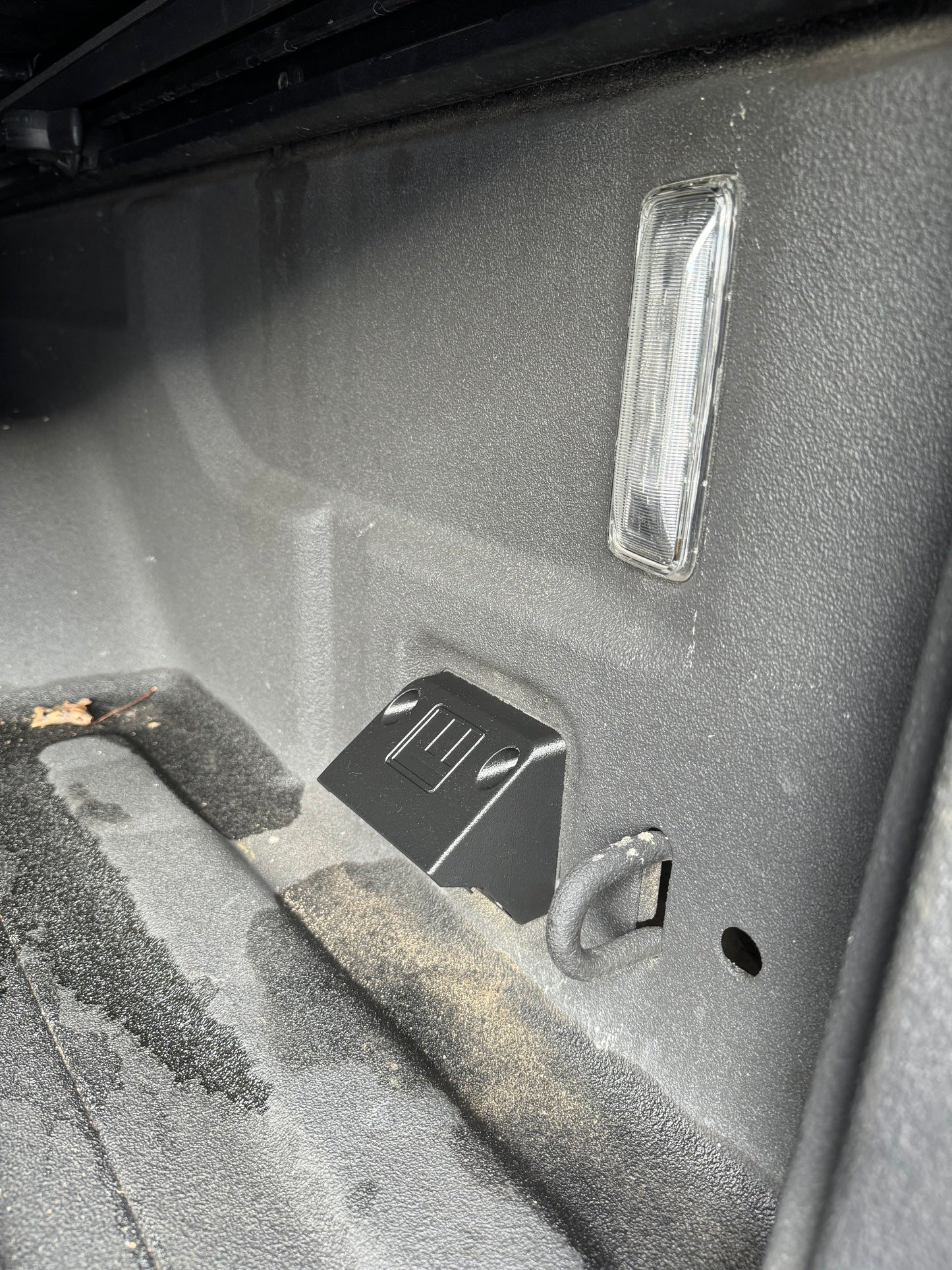

• Mounts in the factory bedside opening, replacing the factory plug or the 110v outlet if your truck has one
• Comes with the wiring already attached: fused positive lead, and ground wire with a ring terminal sized for the fender ground stud

Fitment

• All 2020+ Jeep JT Gladiator, with or without the factory 110v outlet
• Mounting location: passenger-side rear bedside, factory square plug opening

What's Included

• (1) TrailTap unit with pre-attached wiring (fused positive lead; ground wire with ring terminal for fender ground stud)
• (4) M6 x 25mm stainless bolts
• (4) M6 flange nuts
• (1) 15A fuse
• (1) Mini LII sticker

Tools Needed

• 4mm hex socket or Allen key
• 10mm wrench
• 1/4" drive ratchet
• Utility knife (if you have a spray-in bedliner)
• Zip ties (suggested)

All hardware is hand tight only. Do not use power tools.

Installation

Read all instructions before starting. Download the step-by-step install guide with photos: TrailTap Power Port Install Guide (PDF)

Questions? Call 856-336-2639 or email sales@liquidironindustries.com.
